SLAYER STEAM LINE

STEAM SINGLE

For the first time on a SLAYER, an internal reservoir allows for plug-andplay installation.

The Most
accessible SLAYER yet

Built with heirloom-quality craftsmanship, the SLAYER Steam Single is the last machine you’ll ever need.

Plug & Play

The internal 2.5L fresh water tank allows easy setup without plumbing—just plug in and start brewing.

Flexible Brewing

3-position actuator lets you switch brew modes and program shot volumes effortlessly.

Stable Temperatures

Separate PID-controlled brew and steam tanks keep temperatures precise for perfect shots.

Shot Memory

Record and playback up to 2 favorite shot recipes for consistent quality all day.

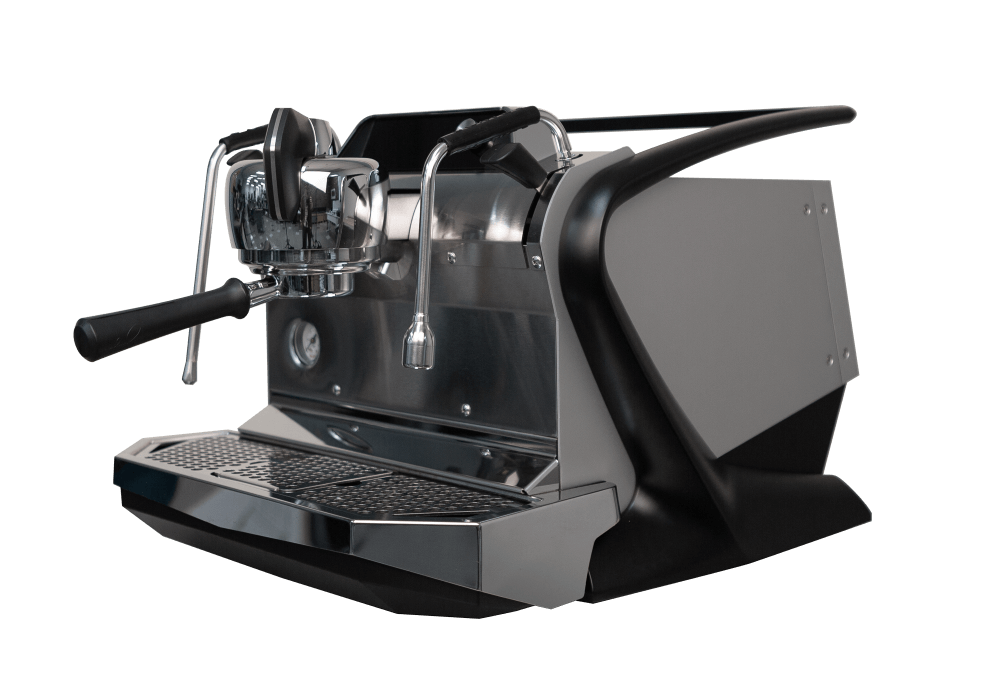

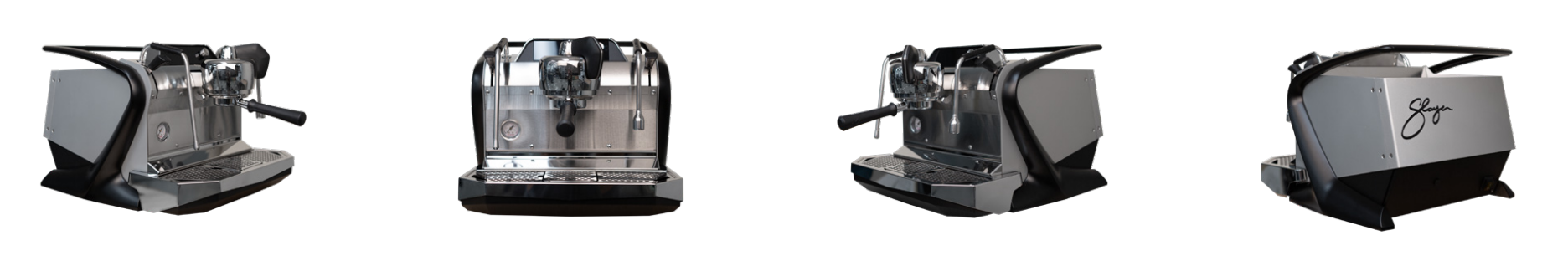

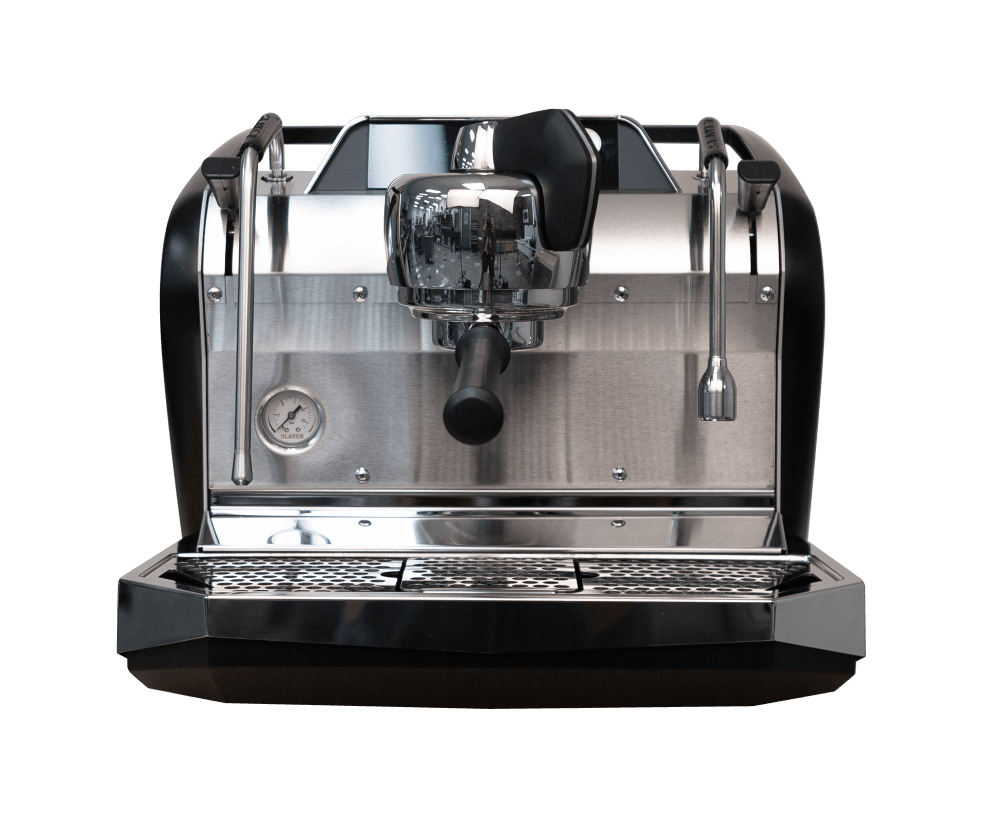

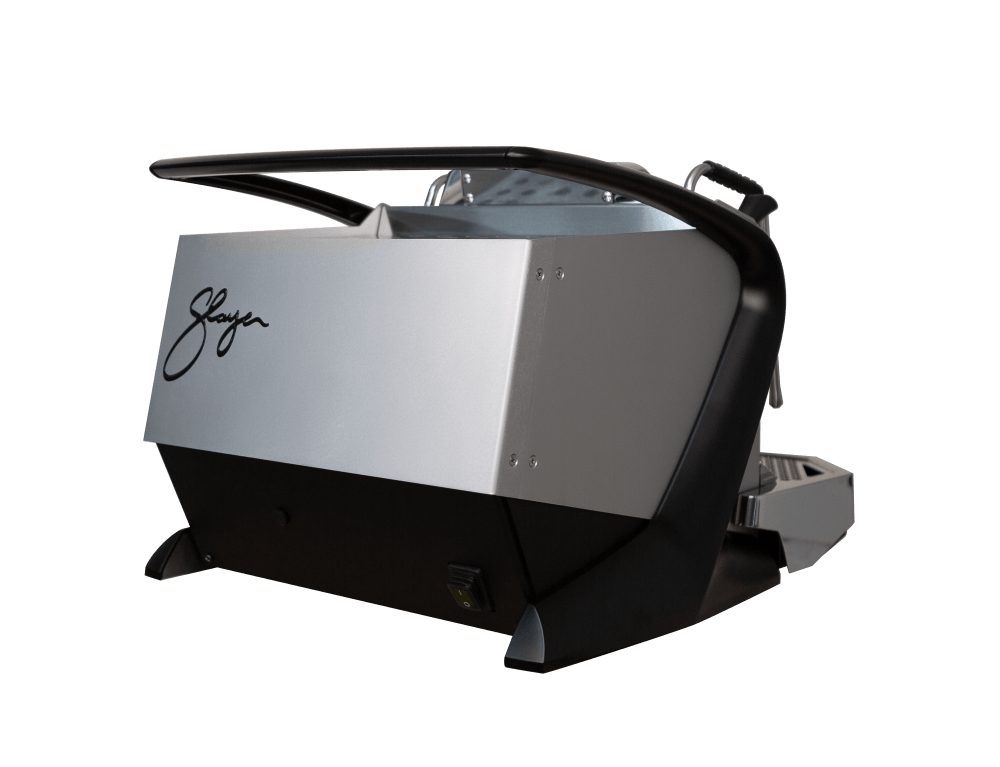

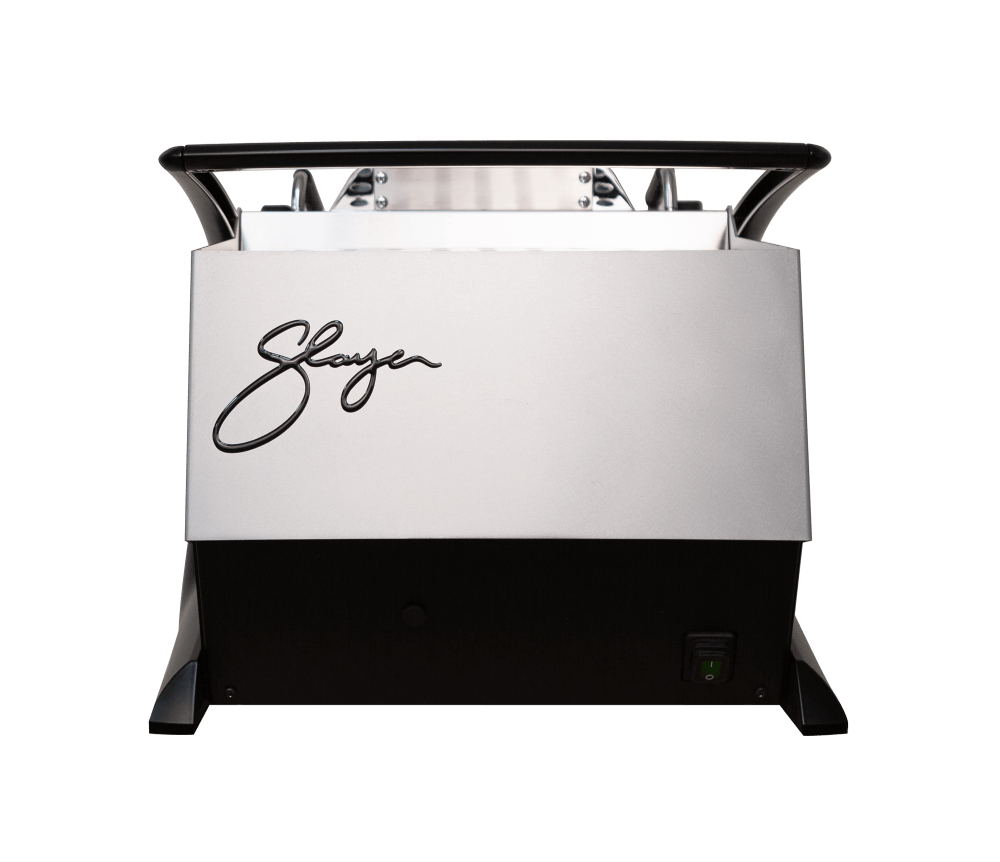

Steam Single

The Steam Single brings all of the beloved features of SLAYER’s popular Steam LP into a smaller footprint. Easily pull manual shots while shifting between flow rates to ‘record’ your favorite shot and ‘playback’ all day. A dedicated pre-infusion circuit lets the barista more gently saturate the coffee bed for more balanced, consistent extractions.

Why you should choose
Slayer Steam Single

The Steam Single is designed for domestic and portable use.
Experience professional commercial SLAYER quality at home or
bring the same performance to your mobile or pop-up cafe.

Internal Fresh Water Reservoir

2.5L supply, discreetly located internally. Optional Plumbing Kit sold separately

Removable Drip Tray Basin

Easy collection of waste water for non-plumbed applications

Independent Brew and Steam Tanks

PID-Controlled Brew Tank (0.8L, 900W) is separate from the Steam Tank (2.4L, 2000W) so each can maintain optimum temperature stability

Brew Group Actuators

3-position actuator allows you to shift between flow rates effortlessly

Dedicated Pre-Infusion Water Circuit

A dedicated hydraulic path to ensure a consistent, repeatable reduced flow rate. Programmable up to 10-sec

Record and Playback

Once you’ve pulled a shot you love, easily ‘record’ and ‘playback’ all day. Save up to 2 recipes

Heads-Up Barista Dashboard

View shot parameters in real time and make easy, on the fly changes to settings

Steam Wands Feature Electric Valves

Reliable, low maintenance valves don’t need rebuilding like mechanical valves

Rotary Vane Pump

Internal commercial style pump gives you professional-level performance

Shot Mirror + Shot Light

Watch your puck saturation with ease

Professional Grade Tool

Commercial group and internal parts make this a capable tool for a business or home—this grouphead is rated at 1 million cycles

PRODUCT SPECIFICATIONS

Weight	84 lb / 38 kg
Brew Tank	84 lb / 38 kg
Steam Tank	2.4 liters, 2,000 watts
Single-Phase (Power 110V spec)	120V; 60Hz; 13A; 1.5kW
Single-Phase (Power 220V spec)	220—240V; 50/60Hz; 10A; 2.1—2.4kW

Standard Configuration

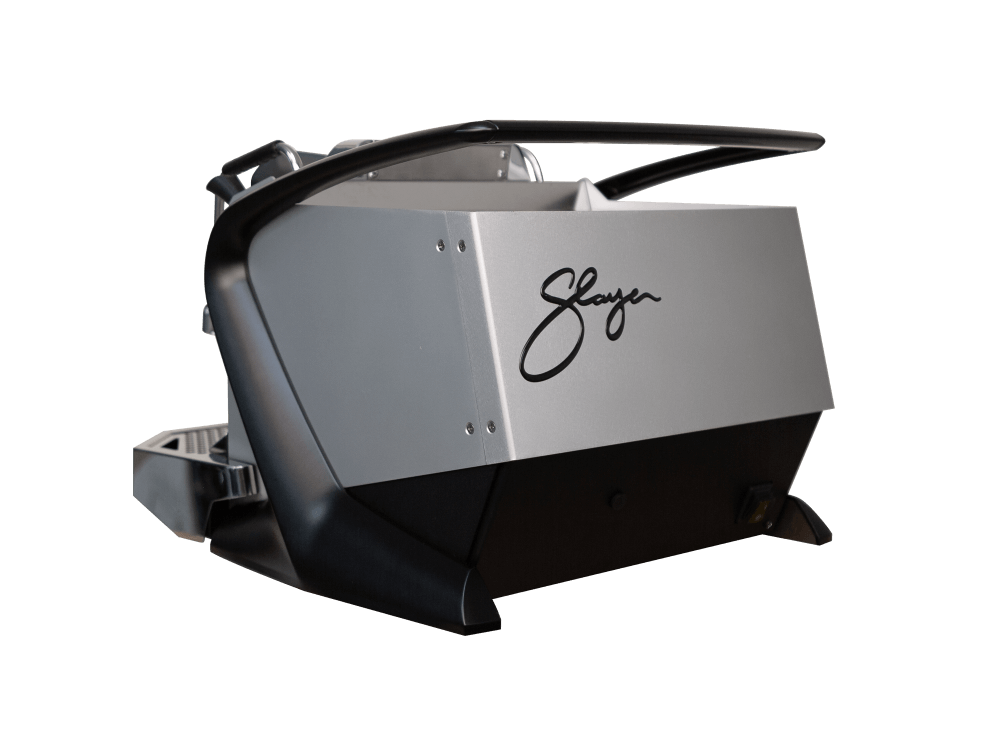

The SLAYER Steam Single features matte black powder-coated cup rail and wings, anodized aluminum body panels, Soft Touch™ portafilters and Onyx Duratex™ actuators.
